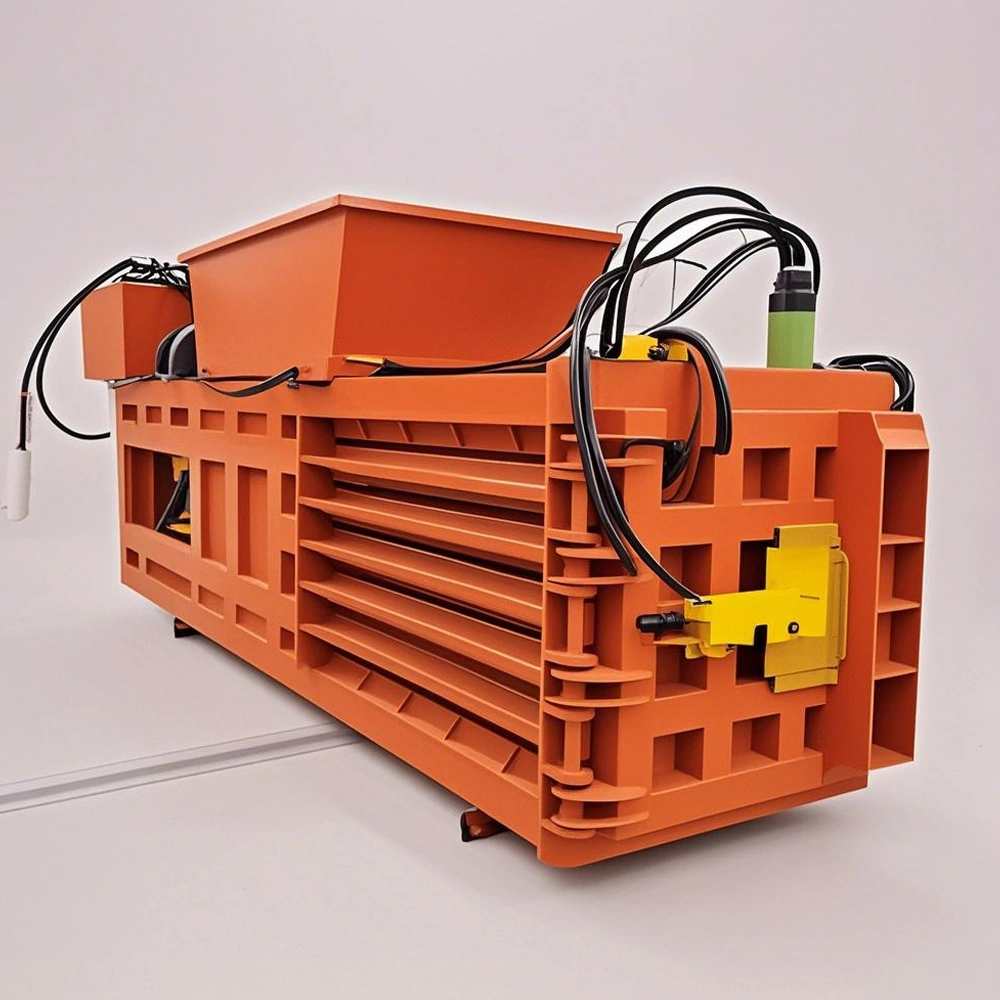

Paper & Plastic Baler Machine for Sale

Name: Paper & Plastic Baler Machine for Sale
Brand: Hebei Yuebang Environmental Protection Technology Co., LTD.

This equipment is specially designed for waste paper, plastic bottles and other loose materials, through hydraulic drive to achieve efficient compression packaging. Equipped with intelligent control system, support automatic feeding, pressure regulation and counting functions, compression ratio of 1:8. High strength steel frame, corrosion resistance and stable operation. Applicable to logistics, recycling plants, and supermarkets, saving storage space and improving recycling efficiency. Easy to operate, low maintenance cost, in line with environmental standards.

Get A Quote

Advantages

Technical Parameters

Applications

Advantages of Paper & Plastic Baler

High-strength steel frame: Q345B manganese steel material, compressive strength of more than 500MPa, to ensure long-term high-pressure operation stability, avoid fuselage deformation.
Corrosion resistant surface treatment: The whole machine is treated by galvanized or spray plastic process, salt spray test for more than 1000 hours, suitable for wet or chemical substances recycling environment.
Hydraulic system optimization: The cylinder is lined with wear-resistant alloy steel (such as 27SiMn), with imported seals to reduce the risk of leakage and extend the maintenance cycle.
Intelligent component protection: The control system adopts IP65 waterproof housing, and the circuit board is coated with moisture-proof glue to ensure reliable operation under harsh conditions.

Advantages of Paper & Plastic Baler

Technical Parameters of Paper & Plastic Baler

	Size LWH（mm）
Size of block	L:800-1500m W:1100mm H:900mm	oil pump
Feeding port size	1500mm1150mm1700mm	Oil control
Compression chamber size	2000mm1100mm900mm	hydraulic control system
Size of the host	8000mm3100mm1300-2800mm	Solenoid valve control
Installation dimensions	17-24m15m-25m4.5-5.5m	Hydraulic capacity
	Power system
Main power	Series YX3-4 30 kw	Suppression of control
The main oil cylinder	Φ180mm*150-2000mm	Operational control
Main cylinder thrust	100T/1000kn	control computer
Pressure of work	15mpa	Touch screen
The main oil pump	VQseriours double pumps/25	Material testing
The main oil pump	High pressure oil pump *1	power
	The machine performance
Suppression of density	300-400 / cubic meter	Bundle of line number
Pressing speed	Suppress forward15s/ backward 7s	Bundle of wire material
Suppression of production	Theoretical value: feed 1 cubic meter =3-4t per hour	Bundle of line control
	Manual clamping system
hydraulic cylinder	Φ1402002sets	motor power
The control mode	Left and right side floating hold (hydraulic cylinder)	oil pump
The automatic control	According to the set density pressure (fully automatic control)	cooler

Applications of Paper & Plastic Baler

The following are the main application scenarios and function descriptions of paper and plastic balers:

Recycling and renewable resources industry

Waste paper/carton packaging: compress the volume to 1/5-1/10, reduce transportation costs
Plastic bottle/film packaging: high density compression (such as PET bottle compression density up to 400-600kg/m³)
Typical applications: waste paper recycling station, plastic recycling plant

Manufacturing industry

Industrial waste disposal: scraps and waste packaging materials produced in the production process
Packaging material pretreatment: Compress excess packaging materials to reduce storage space
Case: electronics factory handles waste plastic film, food factory handles carton waste

Logistics and warehousing

Packaging materials management: Compress idle cartons/pallets
Reverse logistics: return packaging materials recycling processing
Data: More than 80% storage space can be saved after use

Agricultural field

Straw/vine packaging: Biomass energy pretreatment
Seedling pot recycling: centralized treatment of plastic seedling containers
Innovative application: silage compression packaging

Commercial field

Supermarket waste paper treatment: a large number of packaging boxes generated every day
E-commerce package recycling: Waste carton disposal at express sites
Data: A single site can handle up to 3-5 tons per day
