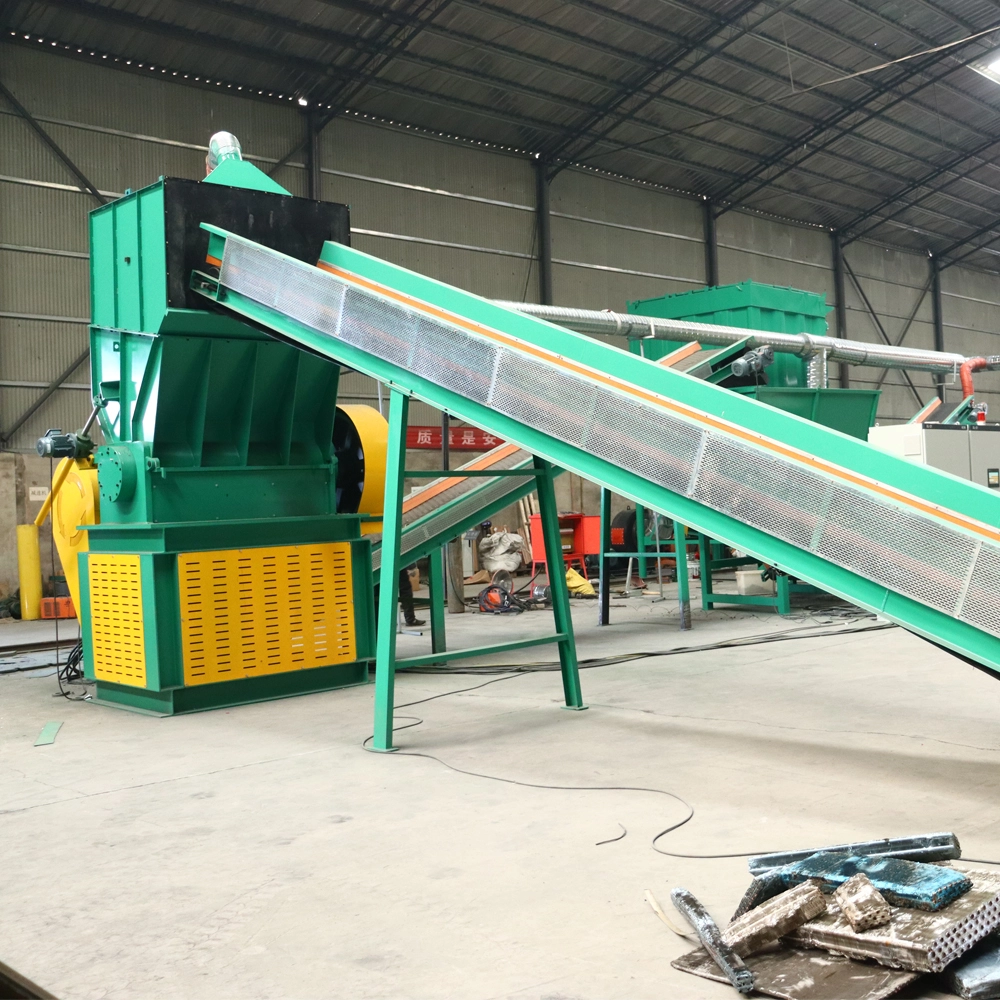

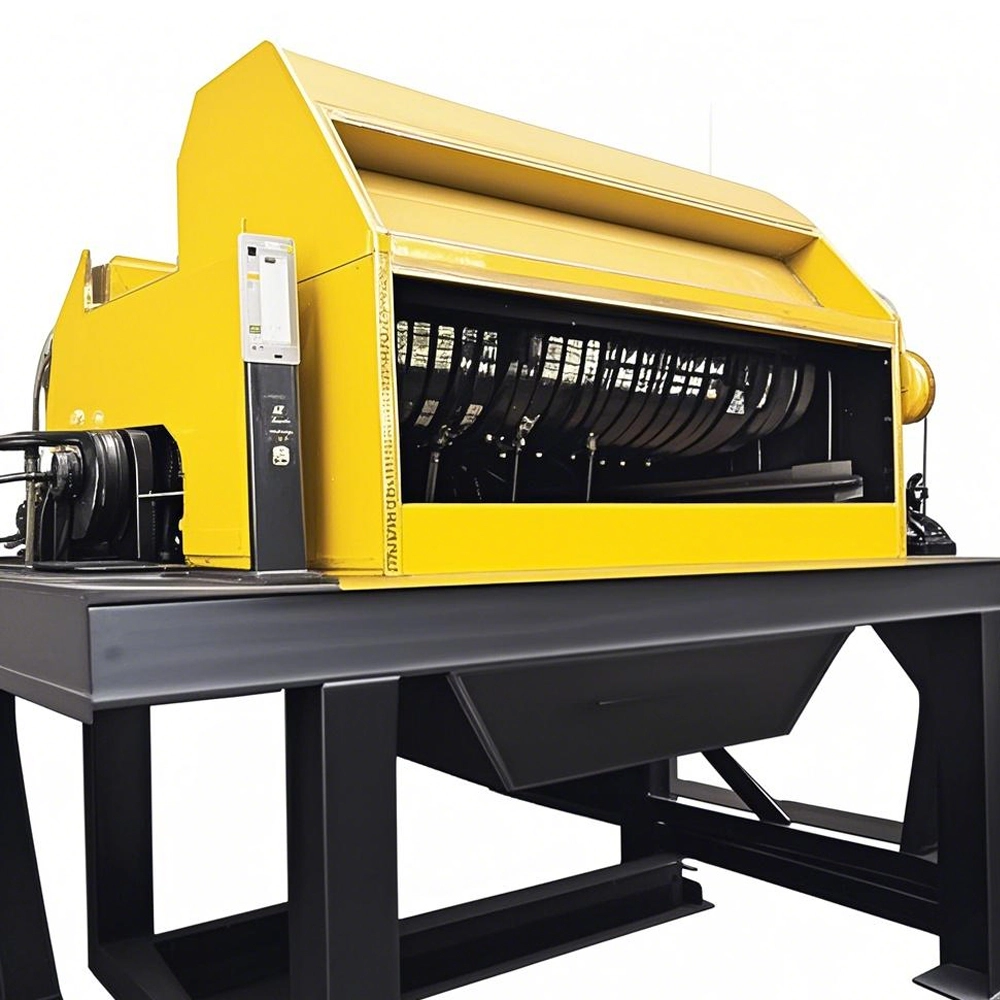

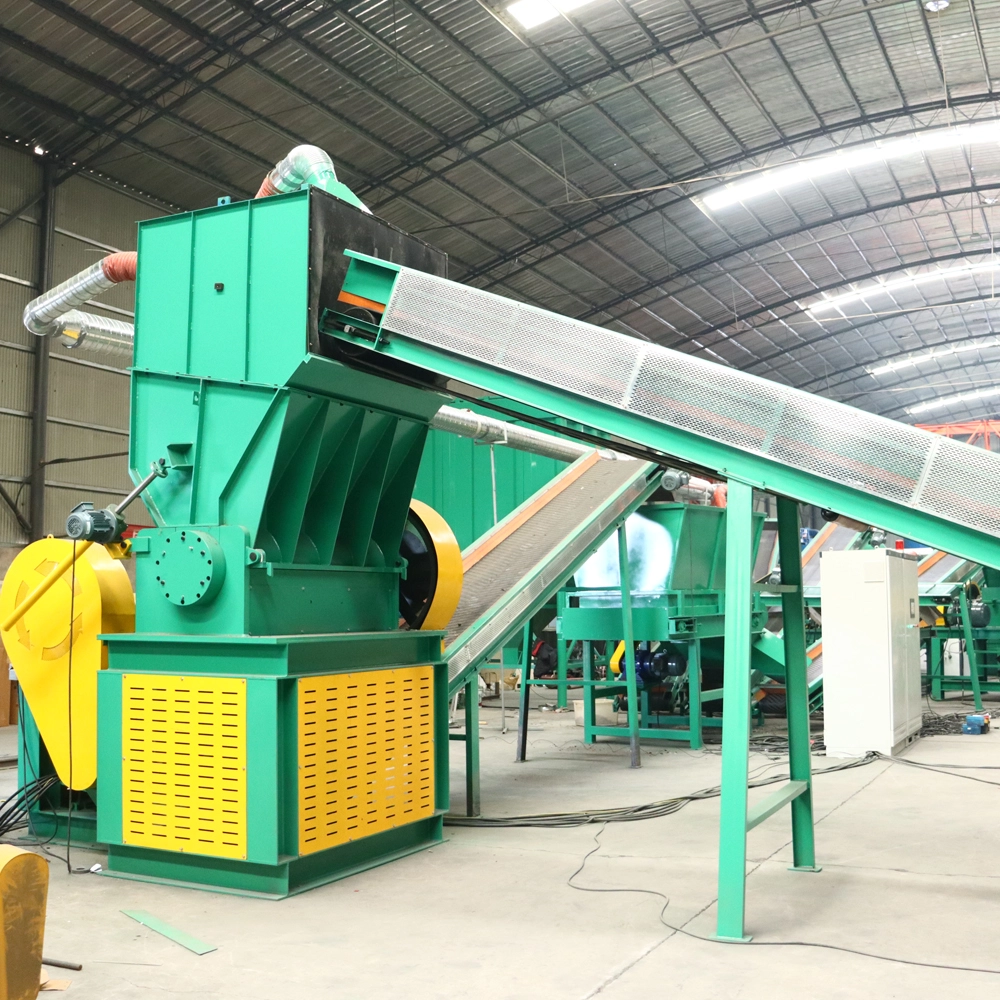

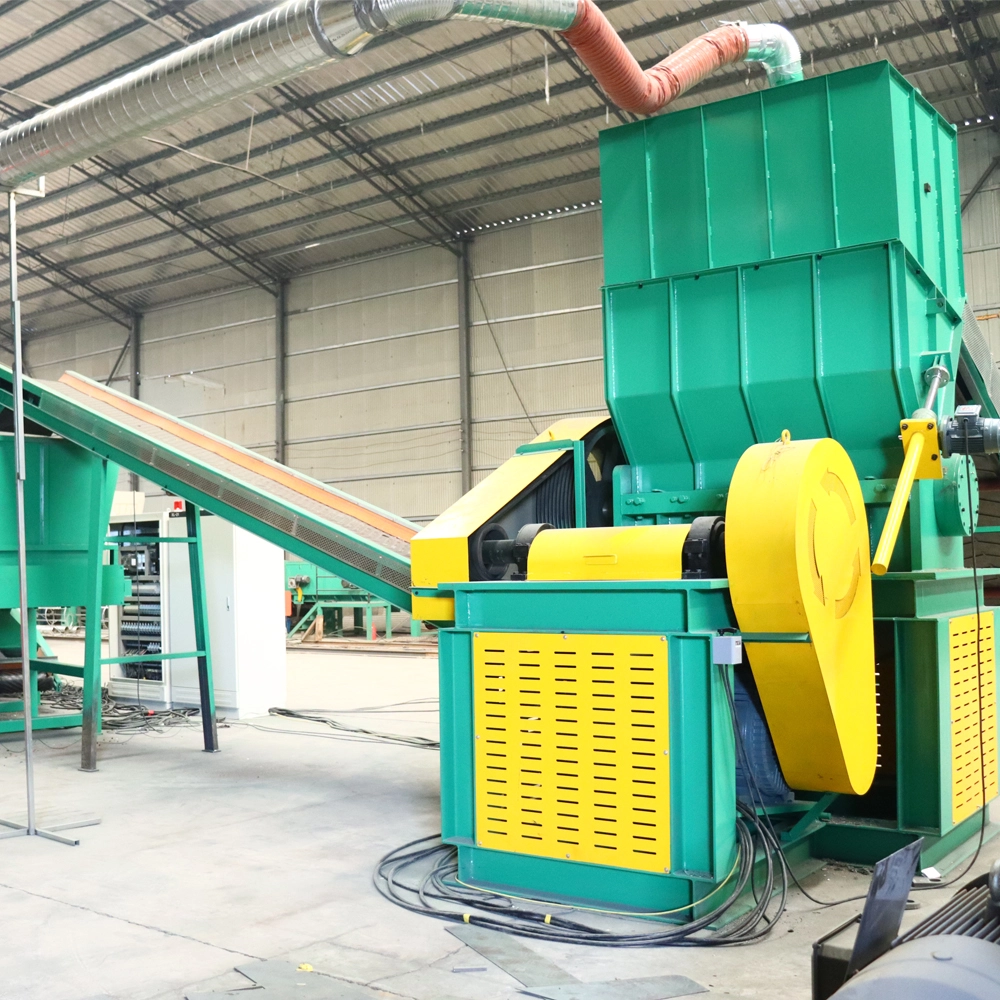

Single Shaft Shredder

Name: Single Shaft Shredder
Brand: Hebei Yuebang Environmental Protection Technology Co., LTD.

The single shaft shredder machine is a robust industrial machine designed for high-volume shredding of medium-hard materials. Features a single rotating shaft with staggered, replaceable blades to efficiently break down plastics, wood, rubber, or light metals. Equipped with a heavy-duty motor (typically 15-55 kW) and a hydraulic system for overload protection. Offers variable speed control and adjustable screen sizes to achieve desired particle sizes (10-100mm). Built with a durable steel housing and noise-reducing design, suitable for continuous operation in recycling, waste management, and manufacturing industries. Ideal for pre-shredding before further processing or compaction.

Get A Quote

Advantages

Technical Parameters

Applications

Advantages of Single Shaft Shredder for Sale

Cost-Effective Design: Simplified single-shaft configuration reduces maintenance and operational costs.
Space-Saving: Compact structure ideal for small-to-medium scale operations.
Versatility: Handles plastics, wood, rubber, and light metals with adjustable screen sizes.
High Torque: Efficient for thick or tough materials like HDPE pipes or automotive parts.

Technical Parameters of Single Shaft Shredder

Model	Size of chamber(mm)	Size of inlet(mm)	Power(kw)	Capacity(kg/h)
YB-S600	660*800	1200*800	45+2.2	600
YB-S800	880*800	1500*900	55+2.2	800
YB-S1000	1200*800	1800*1000	75+2.2	1000

Applications of Single Shaft Shredder

A single shaft shredder is a versatile industrial machine used for reducing the size of various materials through mechanical cutting and tearing. Its applications span multiple industries, including:
Waste Management & Recycling
Plastics: Shredding plastic bottles, containers, and films for recycling into pellets or raw materials.
Metals: Processing scrap metal (e.g., aluminum cans, steel drums) for easier sorting and smelting.
Rubber: Breaking down tires and rubber products for reuse in construction or energy recovery.
Paper/Textiles: Shredding paper waste, cardboard, and textiles for pulping or disposal.
Industrial Waste Processing
Wood/Agro-Waste: Reducing wood scraps, pallets, and agricultural residues (e.g., corn stalks) into biomass for energy production or composting.
Electronic Waste (E-Waste): Shredding circuit boards, cables, and appliances to separate valuable components (e.g., metals, plastics).

Twin Shaft Shredder Machine

Double Shaft Shredder for Sale

Double Shaft Plastic Shredder

Double Shaft Crusher

Double Shaft Shredder Manufacturer

Dual Shaft Shredder Machine

Municipal Solid Waste Twin Shaft Shredder

Shaft Shredder Machine

Twin Shaft Machine

Dual Shaft Shredder

Products

Single Shaft Shredder For Sale Functional Principle

Material feeding — Waste material (plastics, wood, rubber, waste containers, large blocks, etc.) is loaded into the machine via the feed hopper.
Hydraulic pusher feed — A hydraulically-driven pusher gently but firmly pushes the material toward the rotating shaft to ensure continuous contact with the blades.
Rotation and cutting — The motor drives the main shaft (rotor) so that the moving blades rotate and pass against the fixed blade. As material is forced between the moving and fixed blades, it is sheared, torn, and crushed.
Size regulation by screen — Underneath the cutting chamber there is a screen or sieve. Only shredded fragments small enough pass through the screen. Oversized pieces remain inside for further shredding until they reach the required size.
Discharge of shredded output — Once particles pass through the screen, the shredded material is discharged via conveyor, screw conveyor, or other discharge mechanisms for collection or subsequent processing.
