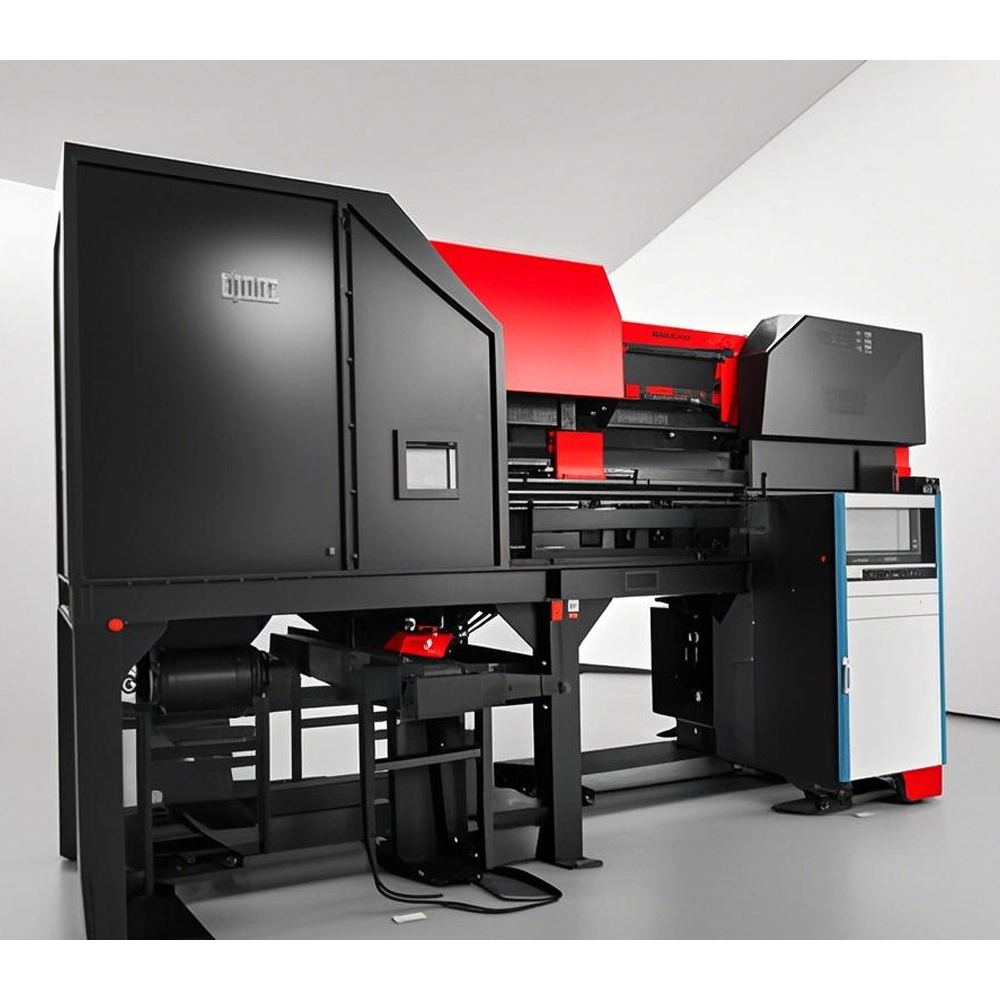

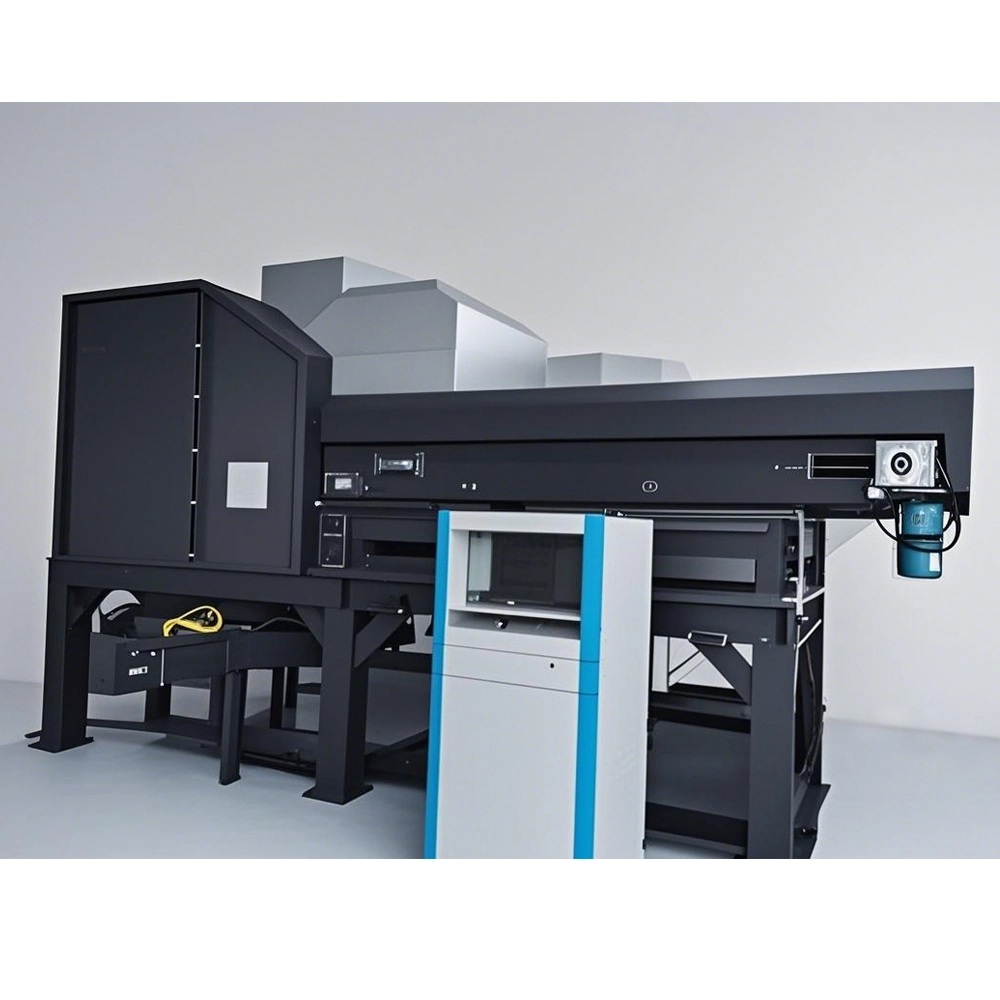

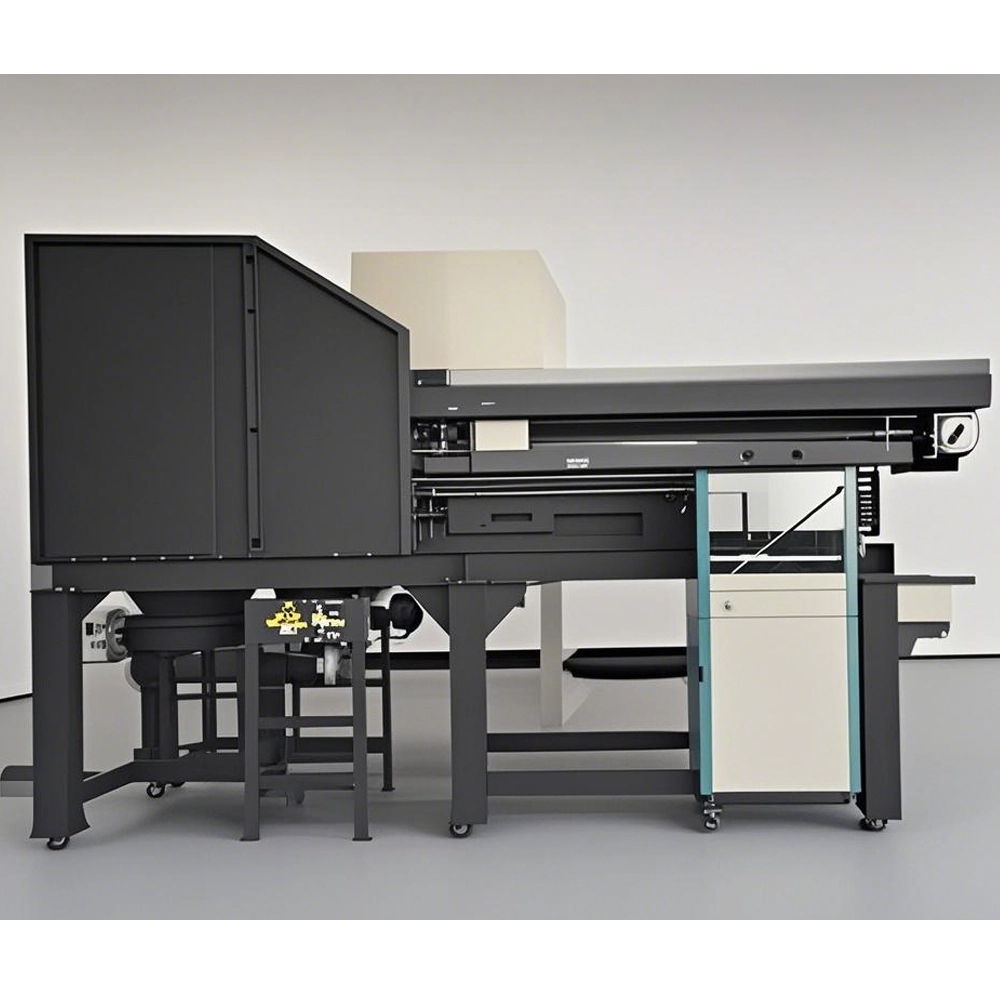

X Ray Sorter

Name: X Ray Sorter
Brand: Hebei Yuebang Environmental Protection Technology Co., LTD.

Efficient industrial X-ray sorter, using advanced imaging technology, can quickly detect and classify metal, plastic, ceramic and other multi-material mixed materials. The equipment is equipped with high-resolution detectors and intelligent algorithms to accurately identify small defects or foreign objects, and the sorting accuracy is ≥99.9%. Support 24/7 continuous operation, suitable for metal, plastic recycling industry. Modular design is easy to maintain, in line with FDA, CE and other international safety standards, optional automatic elimination system and data tracing function.

Get A Quote

Advantages

Technical Parameters

Applications

Advantages of X Ray Sorter

High precision detection
It can identify the internal structure and density difference of the material.
Non-contact sorting
No physical contact with materials to avoid contamination or damage.
Multi-material compatibility
Suitable for plastic, metal, composite materials, ore and other materials.
For example: automatic separation of copper, aluminum and plastic in electronic waste (X-ray to distinguish materials of different densities).
High speed processing capability
Can handle several tons of material per minute, suitable for mass production or recycling scenarios.

Technical Parameters of X Ray Sorter

NAME	SIZE:LENGTHWIDTHHEIGHT(MM)	BELT WIDTH(MM)	POWER(KW)	WEIGHT(KG)
YB-X10	597618982931	1200	9	8610
YB-X20	597625072931	2000	15	1560

Applications of X Ray Sorter

Non-ferrous metal mixture

Copper-aluminum separation

Scenario: Copper and aluminum mixed particles after electronic waste (such as radiators, motor windings) is broken.

Principle: The X-ray absorption rate of copper (density 8.96g/cm³) and aluminum (2.7g/cm³) is significantly different, and XRT can accurately distinguish.

Separation of lead-zinc ore

Application: After crushing lead and zinc ore, XRT separates lead concentrate from zinc concentrate by density difference (11.34g/cm³ lead, 7.14g/cm³ zinc).

Aluminum-magnesium alloy sorting

Case study: In automotive scrap aluminum-magnesium alloy parts, XRT can identify low melting point magnesium (1.74g/cm³) and eliminate it to avoid melting accidents.

Tin-copper ore separation

Technology: Tin ore (density 7.3g/cm³) and copper ore (8.96g/cm³) present different gray values in X-ray images to achieve accurate separation.
